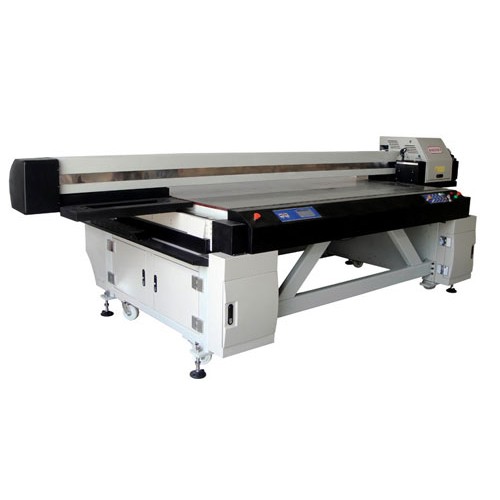

UV flatbed system is easygoing, profitable, far-ranging applications with good market prospects. It can be used in Ad. & Sign industry; Displays & Demo industry; Decoration & glass industry; Leather & textile, & offset printing industry, etc...

Highlight Features

• Printhead Characteristics: Adopt the advanced US Spectra Galaxy 256 robust head, lifetime up to 5 years, fire frequency up to 20KHZ, highly improved the printing efficiency.
• Type of Media: glass, ceramic, aluminum, wood, doors, cardboard, Chevron board, ceiling, MDF, metal lacquer panels, toilet cover, acrylic, plexiglass; table loading capacity of 100KG/sqm.
• Media Detection: Auto detection of Media size,auto. detection of Origin, auto. sensing of media thickness, auto. X/Y/Z location, available with different size and thickness of media.
• UV curing system: Imported UV lamp from UK, long lifetime, fitted with shutters which provide accurate curing for optimal ink adhesion to substrate, double protection to both the head and media.
• Professional software control, high output: Non-stop feeding during the scanning of the carriage speed, up and down, no waste of time; Multi pieces copy function, X/Y direction distance adjustable which enables convenient batch production; Software automatically calculates the workload, your job is under control.
• Vivid Colors: K, C, M, Y / K, C, M, Y + W / K, C, M, Y, Lc, Lm / K, C, M, Y, Lc, Lm + W; With KS2514, you can achieve bottom layer, Top covering, pure color printing can be achieved with the White color.
• Human Security: The design of KS2514 based on human security: Safety inspection of carriage Trajectory, increased electrical cabinet dodr switch.

Models

     No.           Model                  Description

1.         KS2512-8               2.5 * 1.2M / 8 heads / 4,5,6,7C
2.         KS2512-14             2.5 * 1.2M / 14 heads / 4,5,6,7C

Specifications

• Print Methods: Drop-on-demand piezo electric
• Print Head: Spectra 256
• Print Resolution: Max. 720 dpi / 1600 dpi
• Printing Width: Max. 2.40 * 1.22 Meter
• Printing Speed: Draft Mode: 56m²/h; Production Mode: 28m²/h; High Quality Mode: 21m²/h
• Color: (Up to) C, M, Y, K, Lc, Lm, W
• Ink Type: UV Curable ink
• Ink System: Vacuum Negative Pressure Control, Auto Continuous Ink Supply
• Media Holding: Vacuum Absorption, Six Separate Air Chamber Control
• X/Y-Driver Motor: Dual AC Servo Motor
• Media Type: KT board, PVC board, Wood, Acrylic, Glass, Ceramic, etc.
• Media Transmission: Sheet to Sheet
• Interface: USB 2.0
• Maximum Media Thickness: 50 mm
• Heating System: Sub-tank Pre-heating, Printhead Temperature Control
• Feeding System for Sheet Media: Dual Pinch Roller feeding to print edge-to-edge
• Packing Size: (Up to) 3.85 * 2.05 * 1.20 Meter
• Gross Weight: 1060 Kg
• Power Requirement: 110V / 220V ±10%, >10A, 50 / 60Hz
• Power Supply: 9500 KW
• Environment: Temperature: 20°C - 30°C, Humidity: 40% - 80% RH
• Outdoors Durability: 2 Years

Note: Specifications are subject to change without prior notice.
